Export Gedcom File (GSP) GedStar Pro for Android

Introduction

GedStar Pro for Windows is needed to convert the exported GEDCOM file to Android SQLite Database format as described in the Migration Guide below. Visit GedStar Pro for product details. This product offers one of the more complete GEDCOM implementations.

Most Multimedia Conversion modes are supported.

The Character Set Encoding option defaults to UTF-8 but not all Unicode characters are supported in the Android app.

The [[private]] Text Option defaults to Include private text but remove the [[ ]].

The Rich Text Formatting defaults to Reduce rich text to <b> <i> <u> <s> <sub> <sup> so basic font styles are retained but other formats become plain text.

Some fields in the Android app apply HTML encoding to support URL hyperlinks, so those fields have characters such as & ” ‘ < > converted to the HTML encodings &amp; &quot; &apos; &lt; &gt; respectively.

See both the (GSP+) Full Data Export Details and (GSP-) Brief Data Export Details below.

Migration Guide

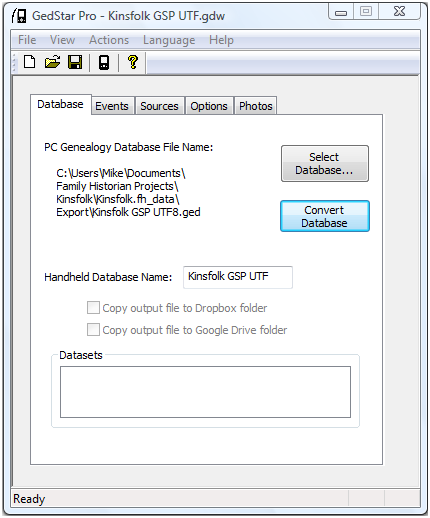

Database tab

After using the FH Plugin, run GedStar Pro for Windows and on its Database tab click the Select Database… button. Then in the Open window select GEDCOM Files (*.ged) lower right, and navigate to the FH Plugin Export Folder to choose the Project…GSP UTF8.ged file and click Open. Set the Handheld Database Name that you want for your Android device.

On the Events tab click Select All to ensure all Events are ticked.

On the Sources tab ensure all Source options are ticked.

On the Options tab tick Include memos/notes and Keep original line breaks (CONT) and Include user-defined reference IDs.

On the Photos tab select all the options required.

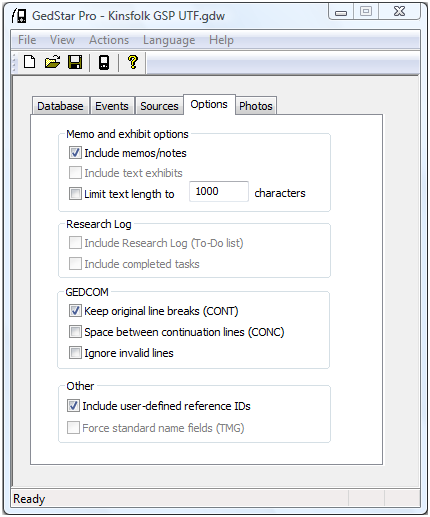

Options tab

Return to the Database tab and use File > Save As… to preserve the option settings, then click Convert Database before transferring the Android SQLite Database created file to your Android device. The easiest transfer method is via Dropbox or Google Drive, but can also be performed via a USB cable connection by using Windows Explorer to copy the .gedstar file from the My Documents\GedStar Pro folder on Windows to the Internal storage\GedStarPro folder on Android.

(GSP+) Full Data Export Details

All the (Str+) Full Data Standard GEDCOM Release 5.5.1 rules apply except as defined below.

Header Record (HEAD)

★ Named List Entry (_LIST, _FLAG, _NOTE, _IDS)
See Extra Options tab Named List Entry 1 _LIST:
The details of each Named List are placed in a synthesised Source Record whose TITLe starts with Ω Named List: and each associated Individual/Family Record has a link to the Source Record.

★ File Root (_ROOT)
See Extra Options tab File Root 1 _ROOT:
The File Root details are placed in a synthesised Source Record whose TITLe starts with Ω File Root: and the associated Individual Record is linked to this record.
The Individual Record itself is moved to just after the HEADer record to be treated as the root record.

★ Header Submitter (SUBM)
See Other Options tab Header Submitter 1 SUBM:
This tag line is removed entirely.

Individual & Family Records (INDI, FAM)

★ Name Fields (NICK, GIVN, SPFX, SURN, _USED)
Any Nickname is enclosed in quotes and placed before the Surname. See Other Options tab Person Nickname 2 NICK:
Other Individual Name fields are moved to a labelled Record local Note otherwise they upset the name:
See Other Options tab Name Given 2 GIVN: that is moved to a Name Given: label.
See Other Options tab Surname Prefix 2 SPFX: that goes to a Surname Prefix: label.
See Other Options tab Surname 2 SURN: that is moved in to a Surname: label.
See Extra Options tab Given Name 2 _USED: that is moved to a Given Name: label.

★ Phonetic Name, Romanised Name (FONE, ROMN)
Any Phonetic Name or Romanised Name is converted to a Record local Note with a Phonetic: or Romanised: label.

★ Individual/Family Tags (ALIA, ANCI, DESI, SUBM)
Each tag is converted to a synthetic custom Fact using the FACT tag with any value on the same line.

★ Custom Attribute (_ATTR, FACT)
See Extra Options tab Custom Attribute 1 _ATTR: or 1 FACT:
Each custom Attribute uses the FACT tag, with any associated value retained on the same line.

★ Fact Age (AGE)
See Other Options tab Fact Person Age 2 AGE: & Fact Husband Age 2 HUSB: & Fact Wife Age 2 WIFE:
Each AGE field is moved to the Fact local Note with an Individual’s Age: or Male/Lady Partner Age: label.

★ Fact E-mail, Website, Fax (_EMAIL, EMAIL, _WEB, WWW, FAX)
See Extra Options tab Fact E-mail 2 _EMAIL: or 2 EMAIL: & Fact Website 2 _WEB: or 2 WWW: & Fact Fax No. 2 FAX:
Any Fact E-mail or Website or Fax is appended to the Fact standard Phone (PHON) field.

★ Pedigree (PEDI, _PEDI)
The child Pedigree status is moved to the Record local Note with a Relationship: label.

Repository (REPO)

★ Record E-mail, Website, Fax (_EMAIL, EMAIL, _WEB, WWW, FAX)
See Extra Options tab Record E-mail 1 _EMAIL: or 1 EMAIL: & Fact Website 1 _WEB: or 1 WWW: & Fact Fax No. 1 FAX:
Any Record E-mail or Website or Fax is appended to the Record standard Phone (PHON) field.

Submitter & Submission Records (SUBM, SUBN)

See Other Options tab Submitter Record 0 @U%d+@: & Submission Record 0 @B%d+@:
Each Submitter & Submission record is converted to a synthetic Source record named Ω Submitter: or Ω Submission: plus the record Name and Id, with all details in the local Note.

Place Records (_PLAC)

★ Place Record (_PLAC, STAN, STAT, MAP, LATI, LONG)
See Extra Options tab Place Record 0 @P%d+@:
Each Place record is converted to a synthesised Source record of type Place Details and all values are retained, including linked Media. ​Wherever possible, the Source record is cited by any associated Place field, or its parent field.

Date Field, Updated Change (DATE, CHAN)

★ Date Field (DATE)
See Extra Options tab Date Field %d DATE:

Usually Date field words are in UPPER case, but they are converted to Title case, e.g. AFTER JAN 1900 becomes After Jan 1900.

★ Updated Change (CHAN)
See Extra Options tab Update 1 CHAN:
The Updated CHANge date/time tags lines are removed entirely.

(GSP-) Brief Data Export Details

All the (Str-) Brief Data Standard GEDCOM Release 5.5.1 rules apply together with the (GSP+) Full Data Export Details defined above, except as defined below.

Header Record (HEAD)

★ Named List Entry, File Root (_LIST, _FLAG, _NOTE, _IDS, _ROOT)
See Extra Options tab Named List Entry 1 _LIST: & File Root 1 _ROOT:
These tag lines are removed entirely.

Individual & Family Records (INDI, FAM)

★ Phonetic Name, Romanised Name (FONE, ROMN)
These tag lines are removed entirely.

Return to the GEDCOM Export Mode advice help page.

Return to the Export Gedcom File main help page.
